Aluminium 4700 Sliding Doors

Aluminium 4700 Sliding Doors

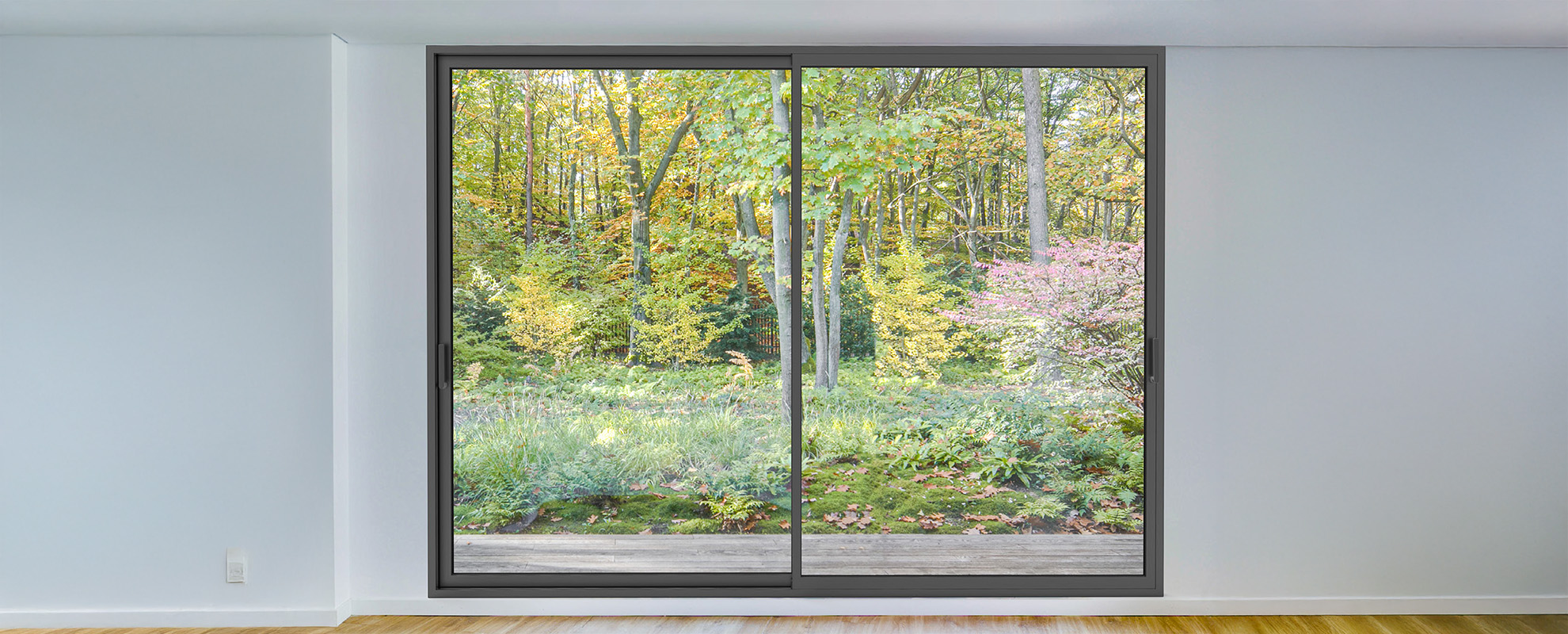

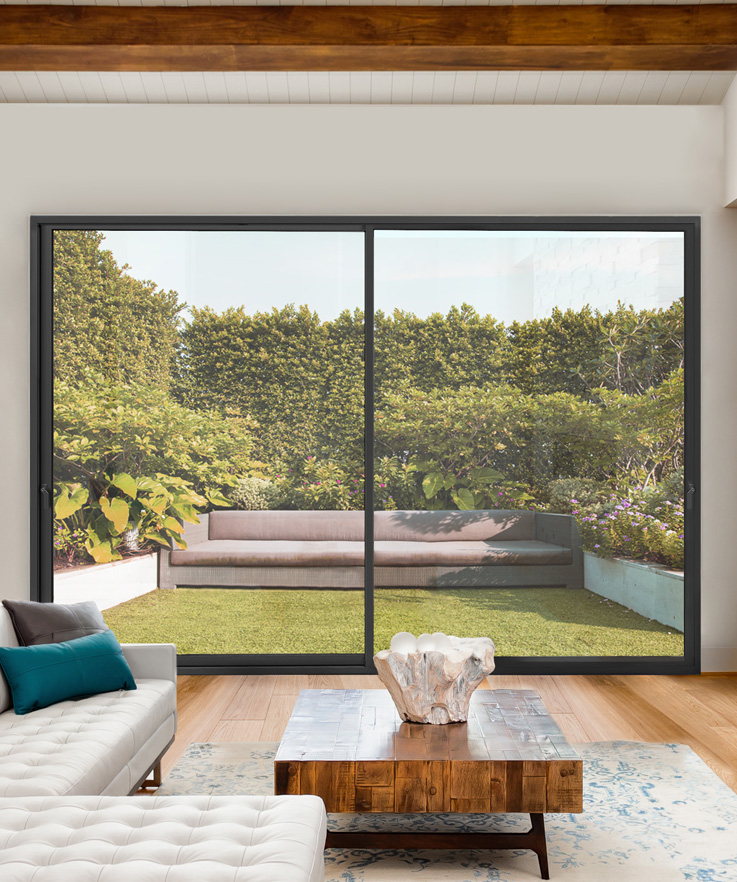

This sliding system, available in lift-and-slide or inline versions, is the ideal solution for closing large openings. It features a modern aesthetic with straight lines, a reduced central mullion, and large glazed surfaces that ensure bright and comfortable spaces, thanks also to its outstanding thermal and acoustic performance.

FEATURES

Thermal transmittance

Uw ≥ 1.0 (W/m²K)

Air permeability

Class 3 / 4

Water tightness

Class 7A

Wind resistance

Class C5 / C2

Acoustic insulation

Rw up to 40 dB

Our Gallery

More Information

Sections

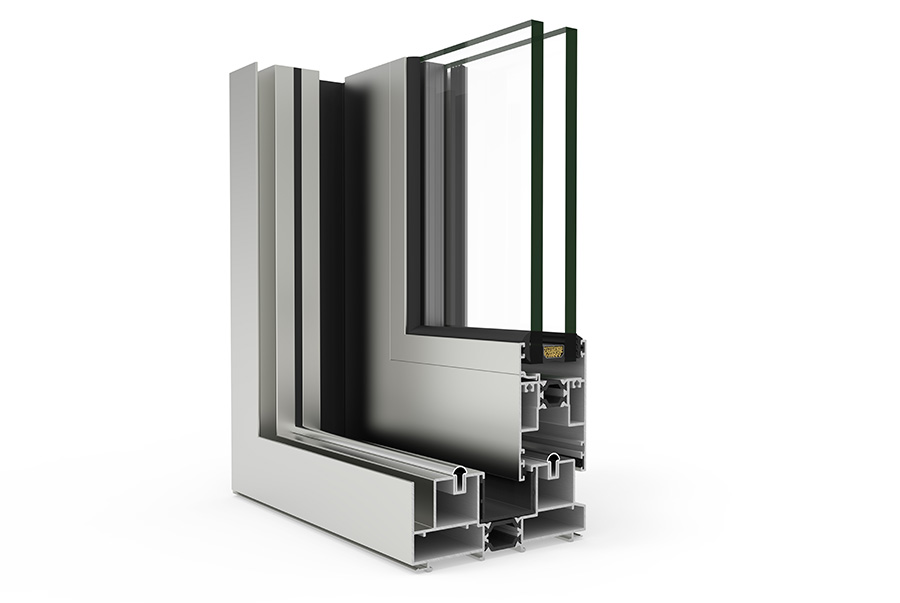

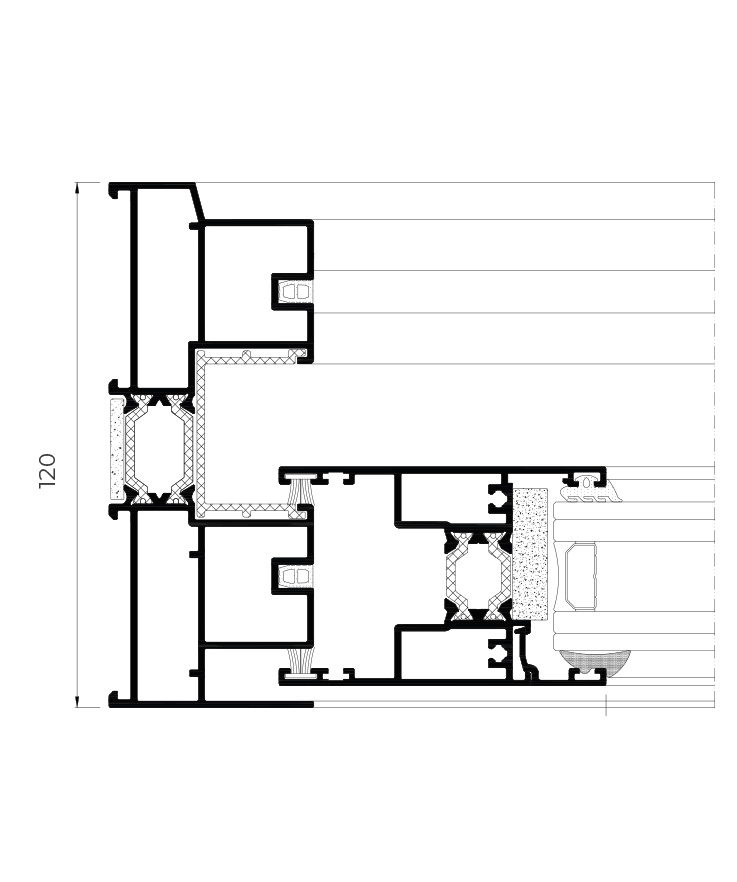

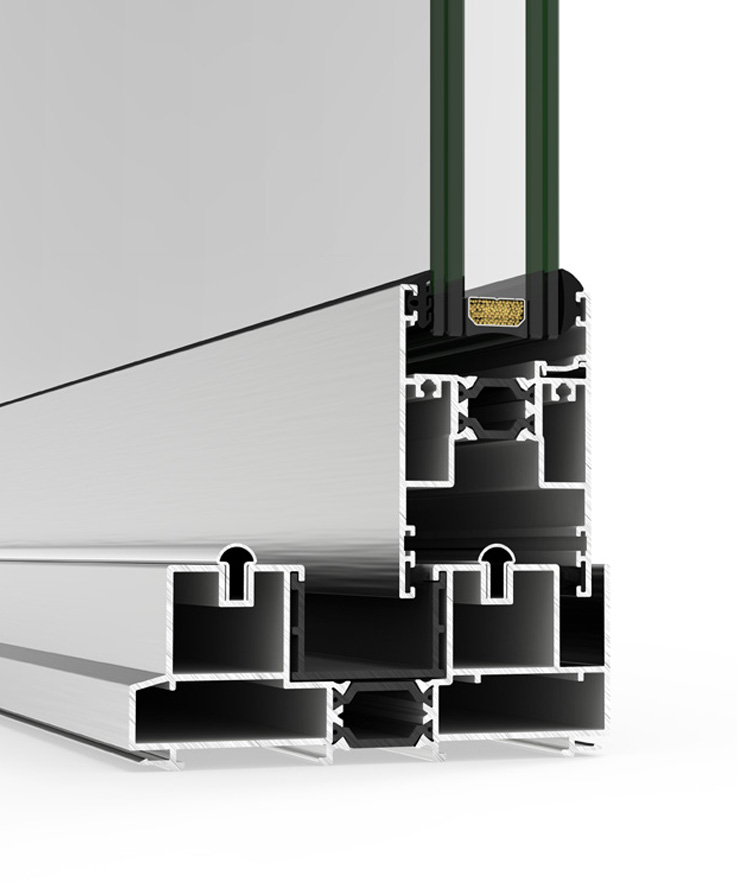

Frame 115 and 120 mm, 185 mm triple track Sash 50 mm

Polyamide strip length

20–25 mm

Profile thickness

Max. 36 mm, Min. 26 mm

Glazing

Max. 65 mm, Min. 22 mm

Maximum sash weight

Inline 280 kg, Lift-and-slide 300 kg

Maximum sash dimensions

Width (L) 2500 mm, Height (H) 3000 mm

Opening Options

Sliding
Single track (sash + fixed)
Double, triple and four tracks
Pocket system
