Aluminium Casement Window
Aluminium Casement Windows
Thermally broken window allowing outward opening both as casement and projecting (British-style). This solution, with a 32 mm thermal break and a thermal transmittance value Uw from 0.9 W/m²K, is certified to PAS 24 and is especially suited to the UK market.
FEATURES
Thermal transmittance
Uw ≥ 0.9 (W/m²K)
Acoustic insulation
Rw up to 45 dB
Air permeability
Class 4
Water tightness
Class E1200
Wind resistance
Class CE2400
More Information

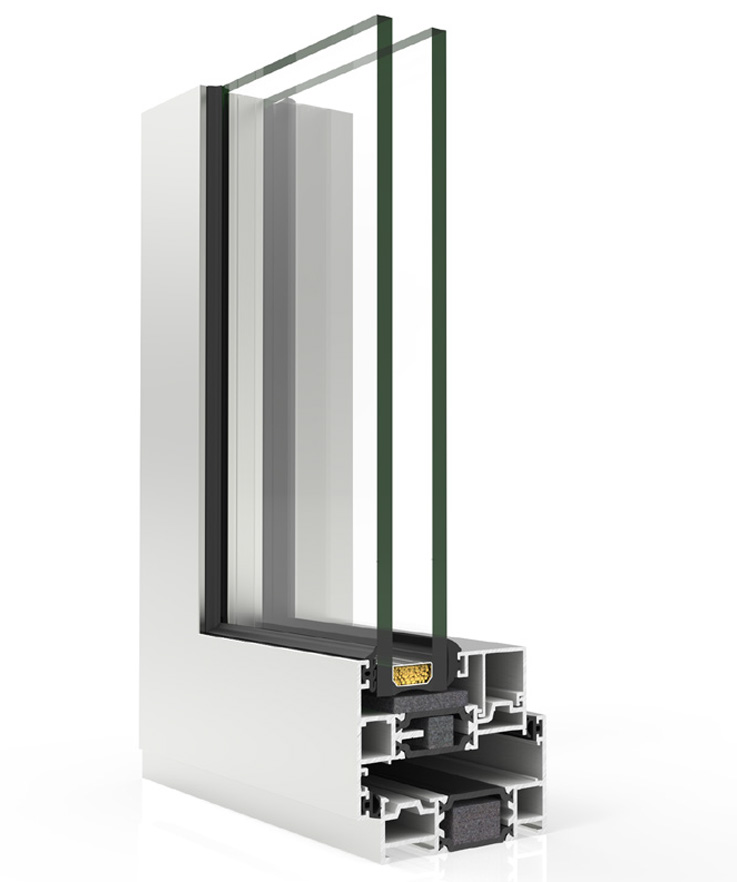

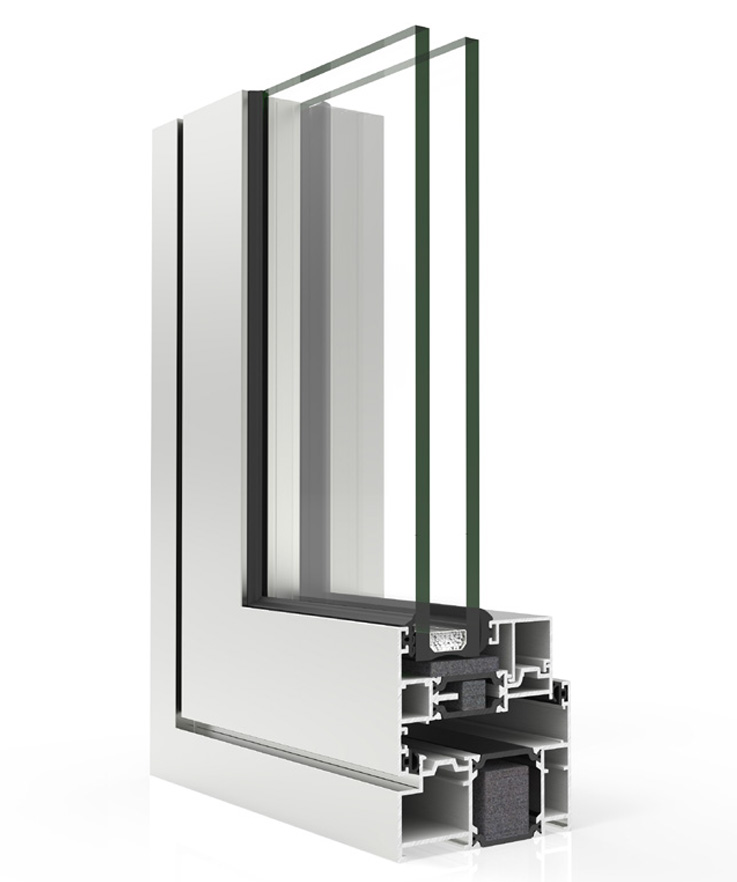

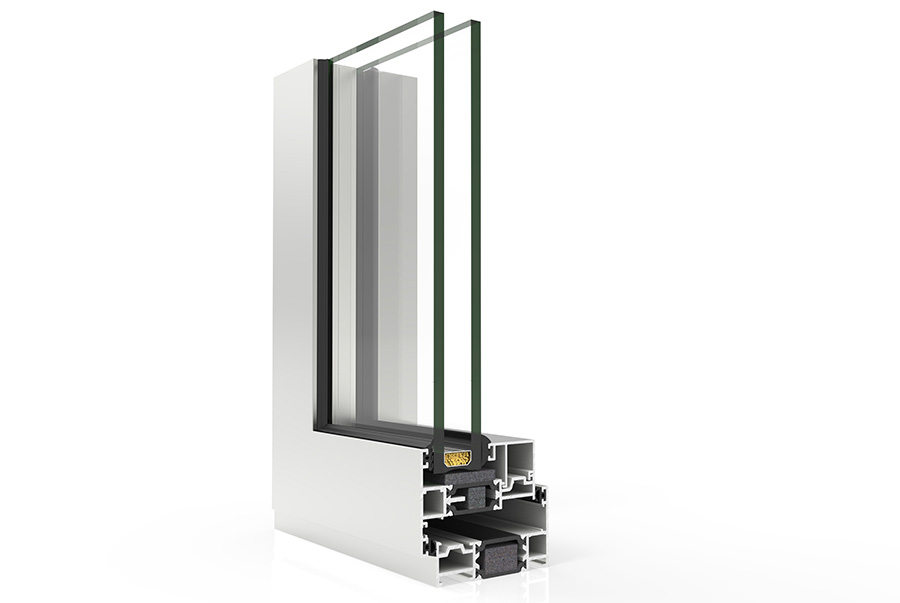

Sections
Frame 70 mm, Sash 70 mm
Polyamide bar length
32 mm
Profile thickness
Window 1.6 mm
Glazing
Max. 44 mm, Min. 23 mm
Maximum sash weight
Reduced Casement: 35 kg
Reduced Projecting: 50 kg
HD Casement: 42 kg
HD Projecting: 100 kg
Maximum sash dimensions
Width (L) 950 mm, Height (H) 1300 mm
Reduced sash (Projecting):Width (L) 1200 mm, Height (H) 1300 mm
Heavy duty sash (Casement):Width (L) 750 mm, Height (H) 1750 mm
Heavy duty sash (Projecting):Width (L) 1800 mm, Height (H) 1800 mm
